Propstglocke Landshut
Digital twin of the Propstglocke
bellcast documents, reconstructs, simulates, and communicates the historic Propstglocke of the Collegiate Basilica of St. Martin in Landshut as a visual-acoustic digital twin.
Object facts
- Object
- Propstglocke, St. Martin, Landshut
- Cast
- 1767, Lorenz / Johann Laurentius Kraus, Munich
- Material
- Bronze
- Diameter
- 2.100 m
- Mass
- over 7.5 t; project assumption 7,672 kg
- Strike tone
- gis0 +6
Project pipeline

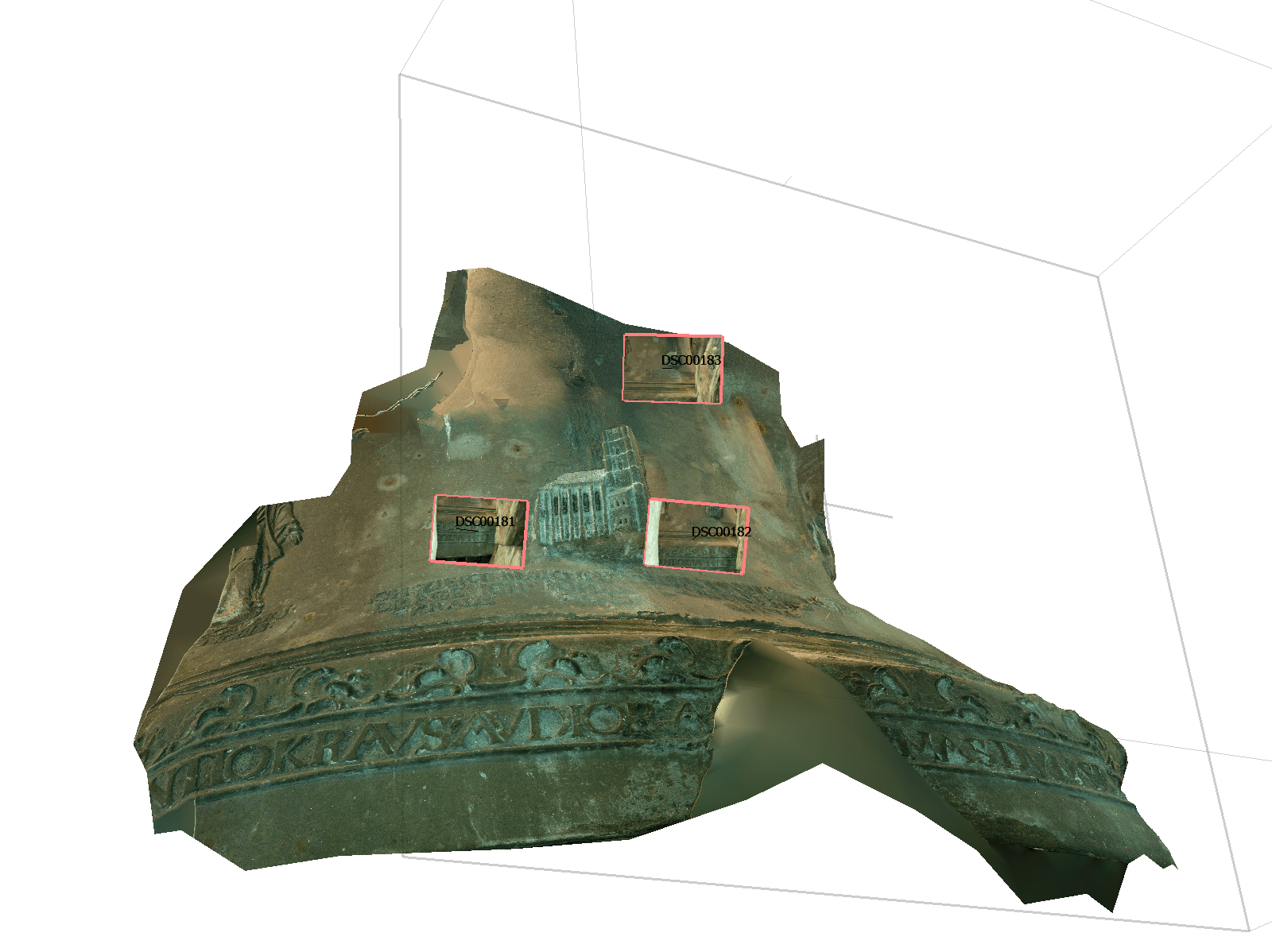

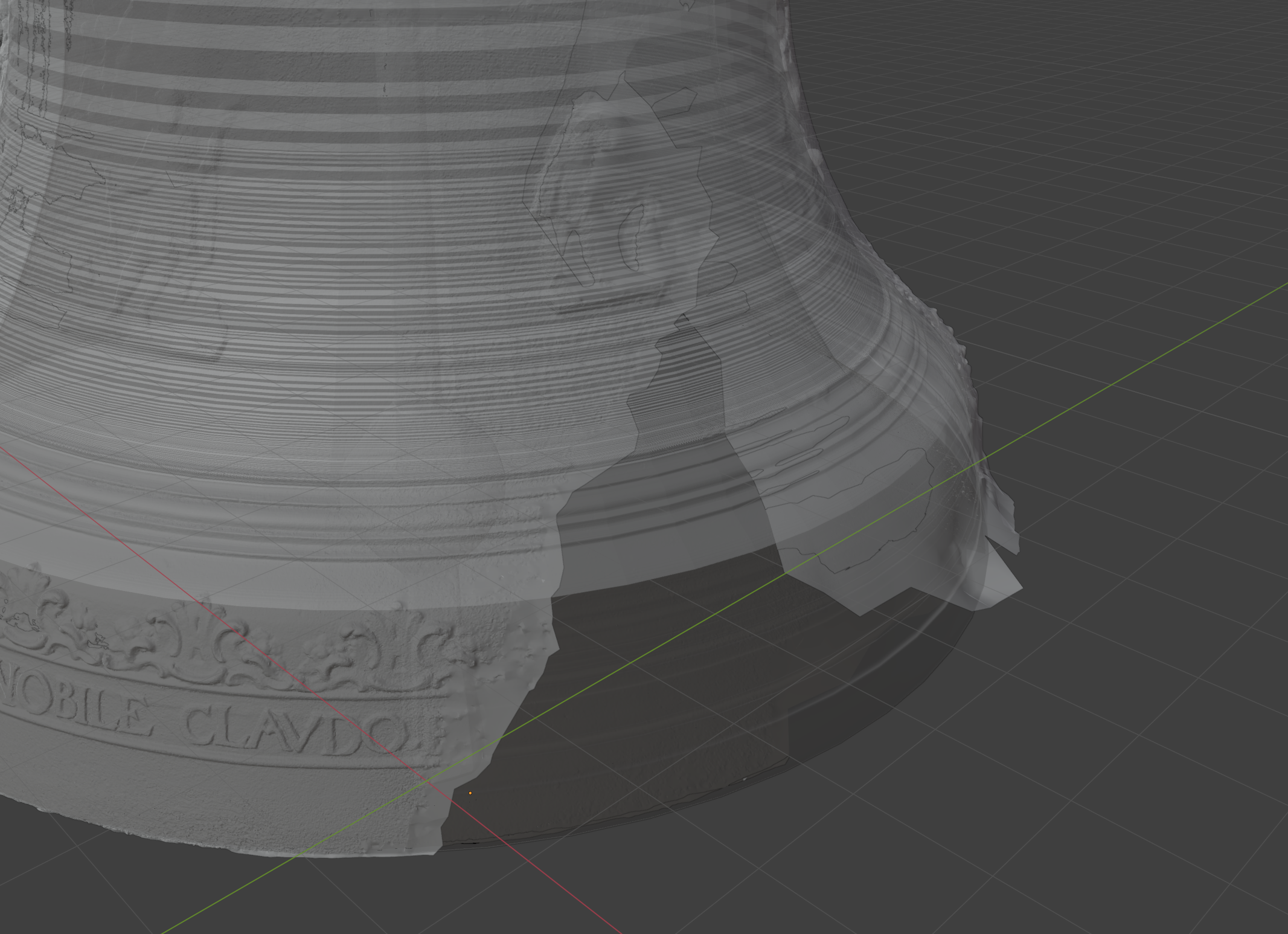

- Photogrammetric acquisition in the bell tower under difficult light, access, and reflection conditions.

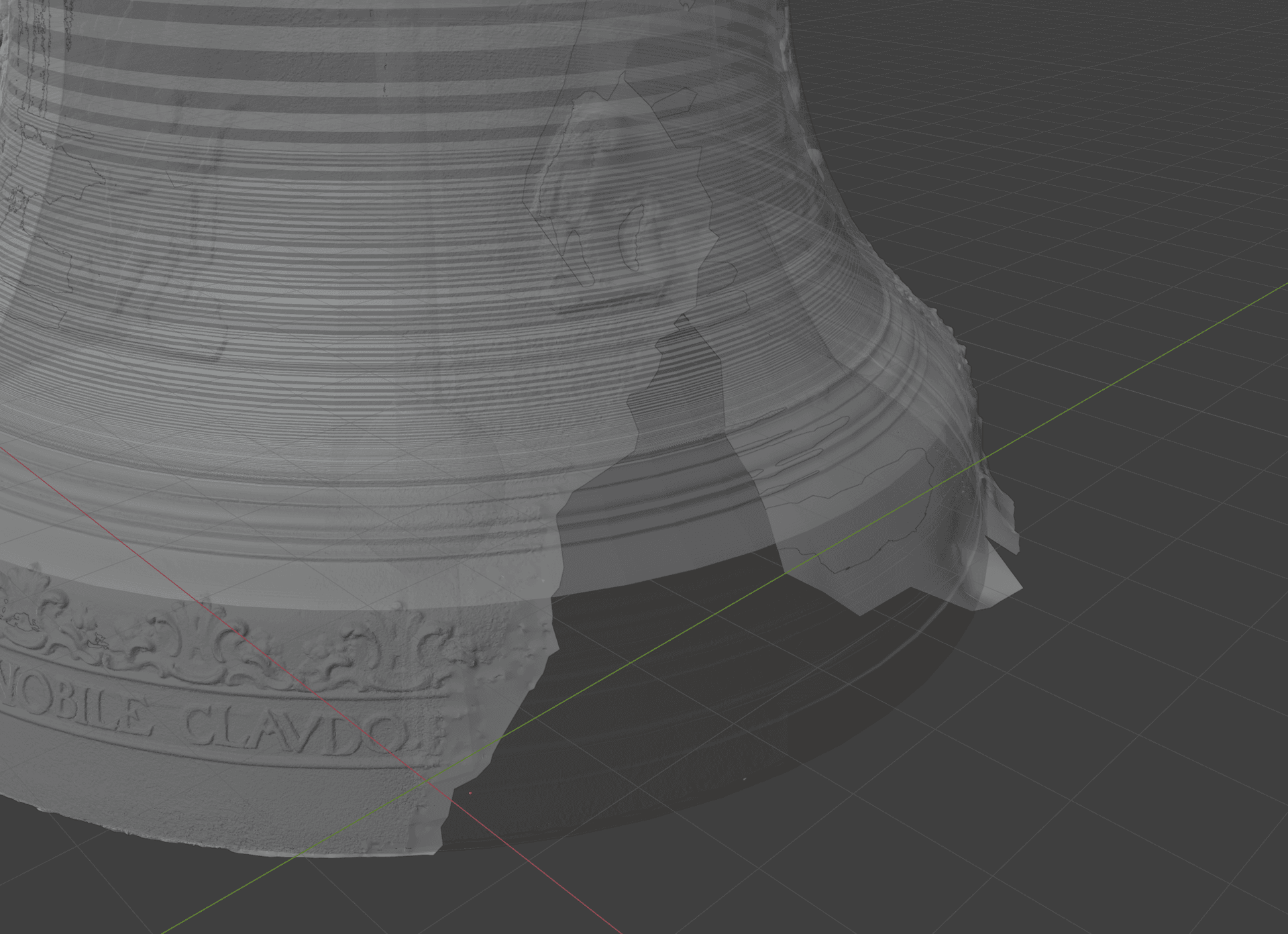

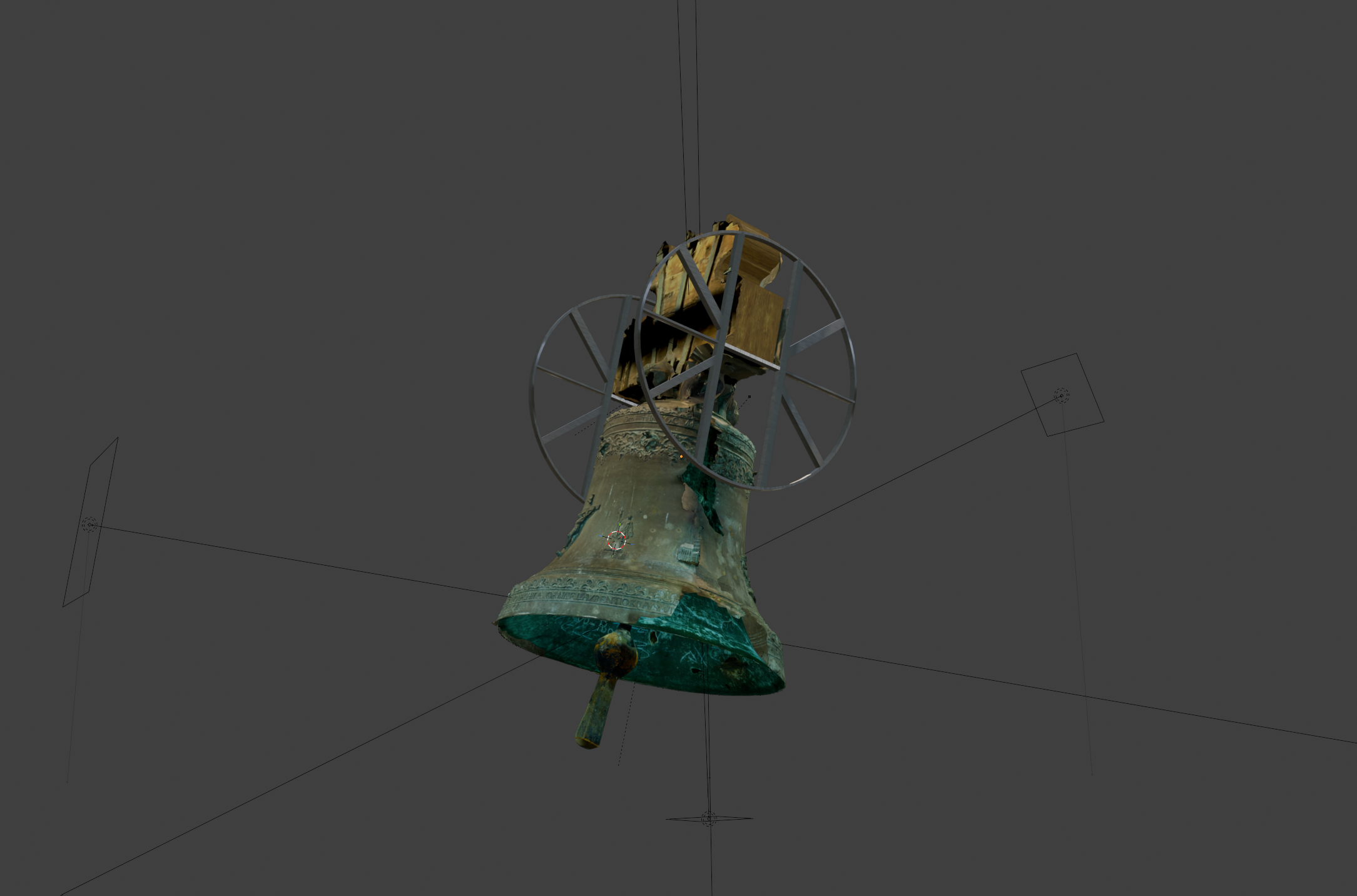

- Triangle-mesh reconstruction, neural completion support, cleanup, and web-level model reduction.

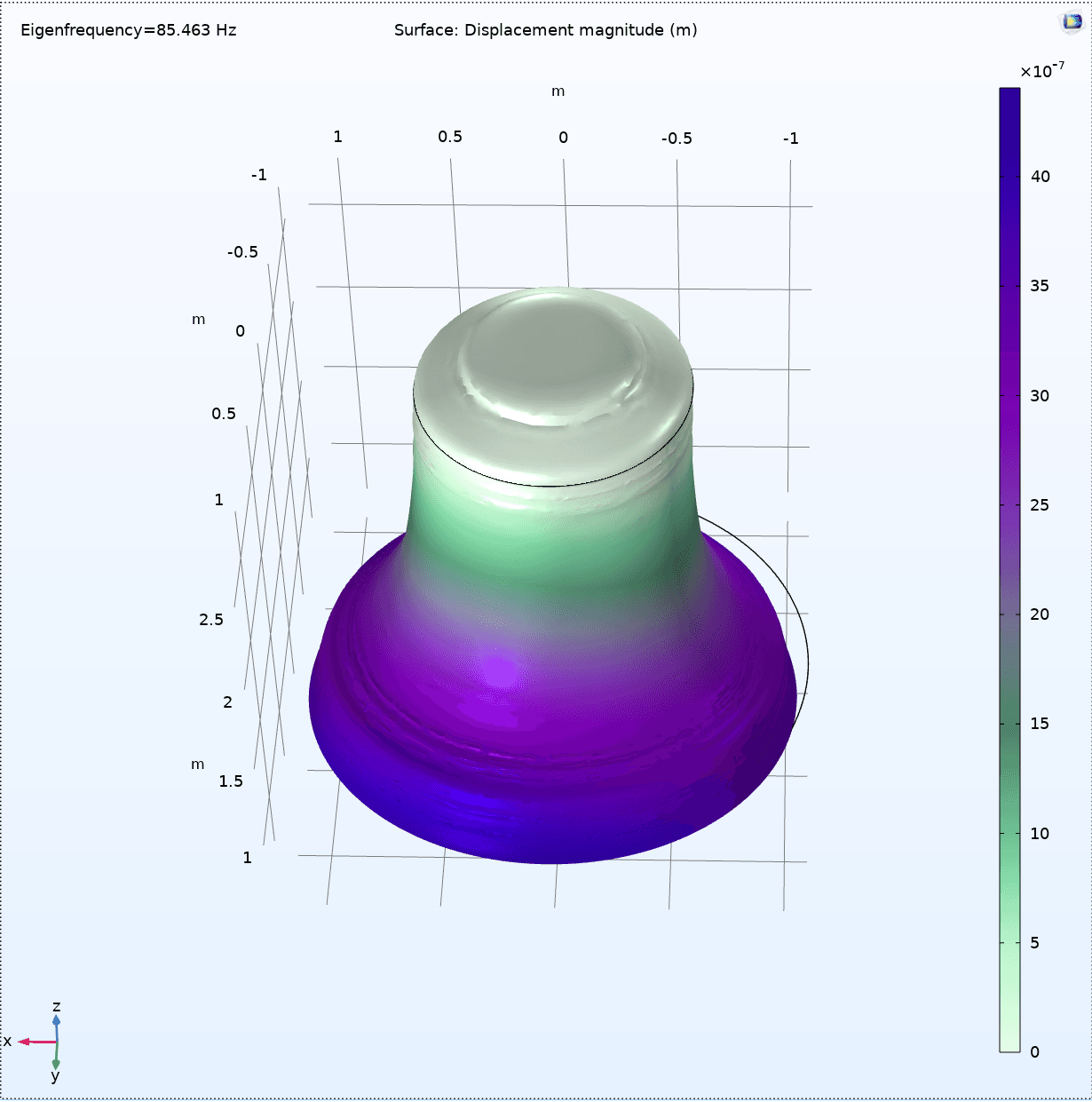

- Finite-element modal analysis and physically informed sound design prepared for a later public audio release.
- Web publication, research documentation, and long-term data preparation with provenance-aware metadata.
Public preview status
This deployment opens the project context and the 3D bell explorer first. Sound synthesis, bell triggering, and the city auralization map remain disabled until the next review step.
